MTD Lawnmower Mulching Blade OEM 7420616, 7420647, 9420616,

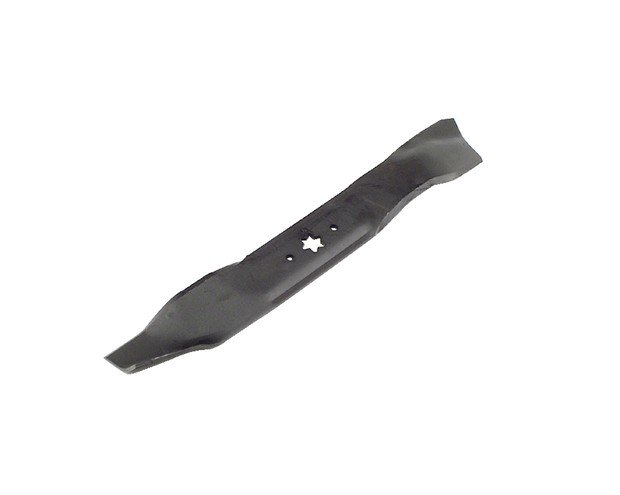

MTD Lawnmower Mulching Blade OEM 7420616, 7420647, 9420616 531mm

Mulching Blade clockwise with a diagonal cutting lenght 531 mm suitable for e.g. the following model(s):

MTD Lawn Tractor(s): B155, H165

To determine the exact spare part, please use the original spare part drawings of the corresponding device!

Please follow carefully the equipment manufacturer’s installation and safety instructions.

Part suitable for: MTD B155, MTD H165

Replaces the original manufacturer no: FRICKE 13270300, MTD 742-0616, MTD 742-0616A, MTD 742-0647, MTD 942-0616

Blade Description

• Type: Mulching Blade

Specifications

• Center Hole Shape: 6-Point Star
• Direction of Rotation: Clockwise
• Hole Spacing (Center to Center): 63.50 mm
• Blade Length: 531.00 mm
• Outer Hole Diameter: 8.00 mm
• Blade Thickness: 4.20 mm
• Blade Width: 70.00 mm
• Weight: 1131 g
