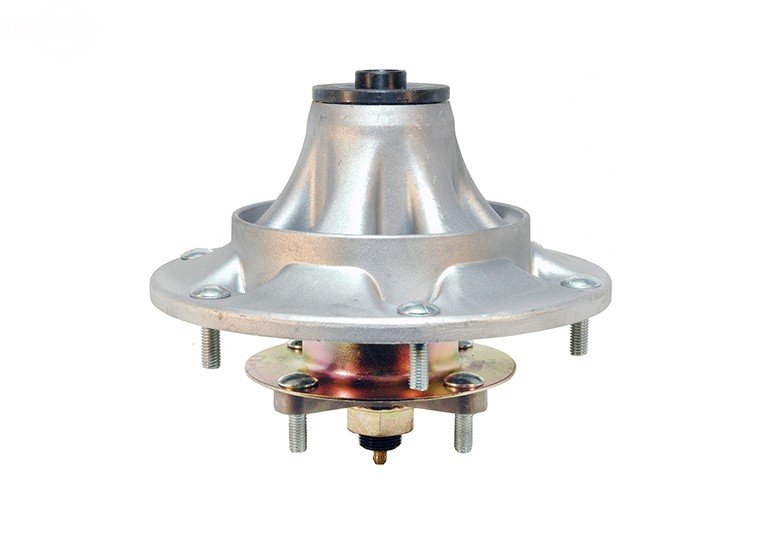

Spindle Assembly for John Deere TCA24880

Spindle replaces John Deere TCA24881,JOHN DEERE TCA51058. JOHN DEERE TCA17517, JOHN DEERE TCA20639, JOHN DEERE TCA24880

Bolt Hole Ø in mm 182,00

Direction of rotation clockwise

Length Shaft in mm 163,00

Mounting Flange to Blade Flange in mm 98,00

Mounting Flange to Upper Edge in mm 38,00

QTY holes/Bolts 6

Blade Spindle suitable for e.g. the following device(s):

JOHN DEERE Lawn Tractor(s): Z-Trak 510 A, Z-Trak 520 A, Z-Trak 710 A, Z-Trak 720 A, Z-Trak 810 A, Z-Trak 820 A, Z-Trak 830 A, Z-Trak 840 A, Z-Trak 850 A, Z-Trak 860 A, Z-Trak 910 A, Z-Trak 915 B, Z-Trak 920 A, Z-Trak 920 M, Z-Trak 920 R, Z-Trak 925 A, Z-Trak 925 A EFI, Z-Trak 925 M EFI, Z-Trak 930 A, Z-Trak 930 M, Z-Trak 930 M EFI, Z-Trak 930 R, Z-Trak 950 A, Z-Trak 950 M, Z-Trak 950 R, Z-Trak 960 A, Z-Trak 960 R, Z-Trak 970 A, Z-Trak 970 R

Spindle for 1400 and 1500 series & Z-Trak, 1420, 1435, 1445, 1545, 1565, 1600 Sidewing, 1620 Sidewing, 1600 Turbo Sidewing, 1600, 1620, 1600 Turbo, 777, 797 & 997 - 60" RD Deck, 997 - 60" Deck. Shaft length 6-5/8".
