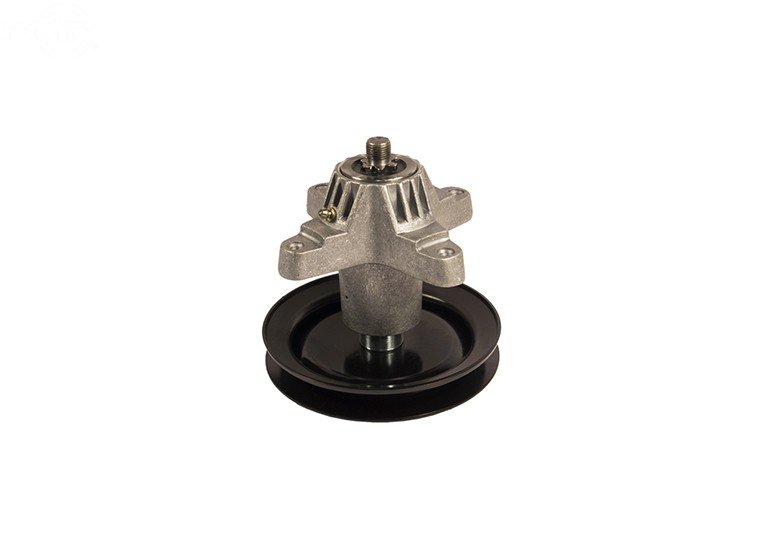

Spindle Assembly replaces Cub Cadet 918-0659, 618-0659, 618-0624 , 618-0659A, 918-0624A, 918-0659A, 9180624B
TORO: 112-0460
TROY BILT: 918-0659A
Belt Groove Width Upper in mm 15,50
Blade mounting 6 point star
Bolt Hole Ø in mm 127,00
Direction of rotation clockwise
Length Shaft in mm 164,00
Mounting Flange to Blade Flange in mm 52,80
Mounting Flange to Upper Edge in mm 86,60
Pulley Upper Ø in mm 155,00
QTY holes/Bolts 4
CUB CADET 618-0624, CUB CADET 618-0659, CUB CADET 918-0624, CUB CADET 918-0624A, CUB CADET 918-0659, CUB CADET 918-0659A, MTD 618-04037, MTD 618-0624, MTD 618-0624A, MTD 618-0659, MTD 618-0659A, MTD 918-04037, MTD 918-0624, MTD, 918-0624A, MTD 918-0659, MTD 918-0659A, TORO 112-0460, TROY BILT, 618-0624, TROY BILT 618-0659, TROY BILT 918-0624, TROY BILT 918-0624A
Fits models LT1040, LT1042, LX420 (13AX60RG544, Part# 112-0460) & cub cadet RZT mowers with 42" decks using star hole blade. Comes with 756-1227, 956-1227 pulley.
