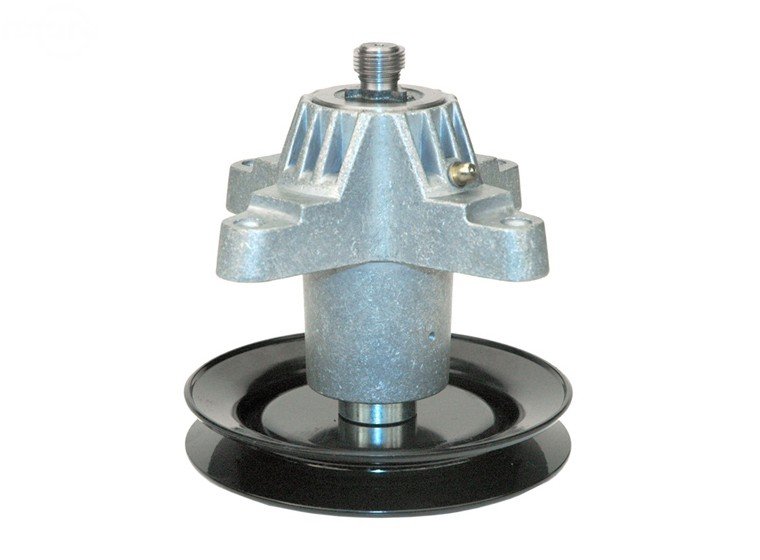

Spindle Assembly replaces CUB CADET 618-04495, 918-04495A.
Also Replaces Toro 112-6063. Fits MTD 700 SERIEs, 13AC762F052 & 13RC762F052.
Belt Groove Width Upper in mm 17,40
Blade mounting 6 point star
Bolt Hole Ø in mm 126,00
Length Shaft in mm 156,30
Mounting Flange to Lower Edge in mm 52,00
Mounting Flange to Upper Edge in mm 104,30
Pulley Upper Ø in mm 142,20
QTY holes/Bolts 4
Replaces the following part numbers
MTD 618-04474, MTD 618-04474A, MTD 618-04474B, MTD 618-04495, MTD 618-04495A, MTD 918-04474, MTD 918-04474A, MTD 918-04474B, MTD 918-04495, MTD 918-04495A
CUB CADET 618-04474, CUB CADET 618-04474A, CUB CADET 618-04474B, CUB CADET 618-04495, CUB CADET 618-04495A, CUB CADET 918-04474, CUB CADET 918-04474A, CUB CADET 918-04474B, CUB CADET 918-04495, CUB CADET 918-04495A
