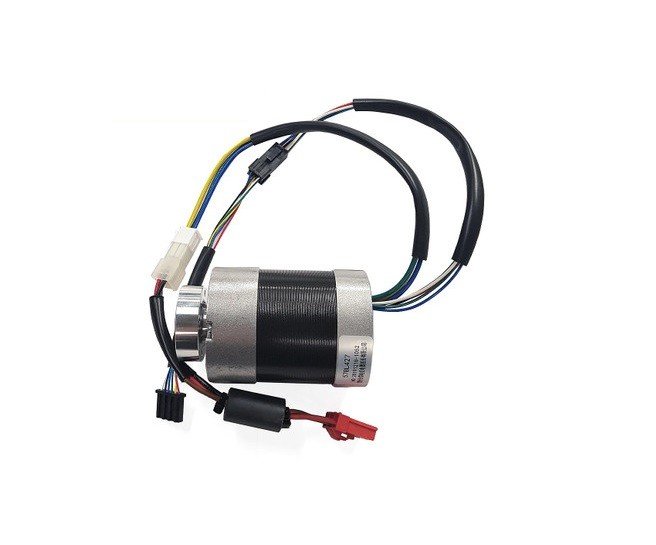

Ambrogio / Techline 2-Wire Blade Motor 051A00010A

Important: Before ordering, please verify the motor type on your robot, as some models may use either a 1-wire or 2-wire motor.

Wiring Information:

• 2 wires:
  • Wire 1: RED/YELLOW/GREEN/BLUE/BLACK/WHITE
  • Wire 2: BLUE/YELLOW/GREEN

Motherboard Connections:

• Connector 1: The RED/YELLOW/GREEN/BLUE/BLACK/WHITE wires connect to the black slide connector.
• Connector 2: The BLUE/YELLOW/GREEN wires connect into the BLACK/BROWN/RED wires via the red connector.

Note: On some models, these motherboard connectors split in the middle of the wiring to allow block connectors to interface directly with the motherboard.

• Block Connector 1: RED/YELLOW/GREEN/BLUE/BLACK/WHITE wires connect to the black block connector.
• Block Connector 2: BLUE/YELLOW/GREEN wires connect to the white block connector.

Compatible Models:

• Ambrogio: L250i, L250i S+, L350, L35, 4.0, and other models.
• Techline: BX4, D25, PROTECH L25, PROTECH S25, and other models.

Replaces: 051A00010A
